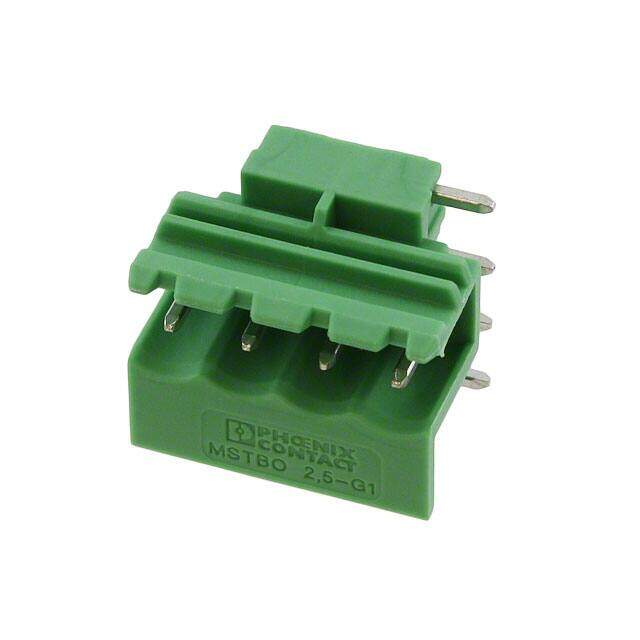

1861073
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
For Soldering On To The Right Side Of The Terminal Board
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.61736
≥100 USD $4.416896
≥500 USD $4.296512
≥1000 USD $4.01544
≥3000 USD $3.694222
Inventory: 1081
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 19.95mm
Length 14.65mm
Height 18mm
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 4
Voltage - IEC 400V
Current - UL 16A
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.709 18.00mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBO
Published 2011
Packaging Bulk
Physical
Weight 2.780011g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Free Hanging, Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 7 Weeks
