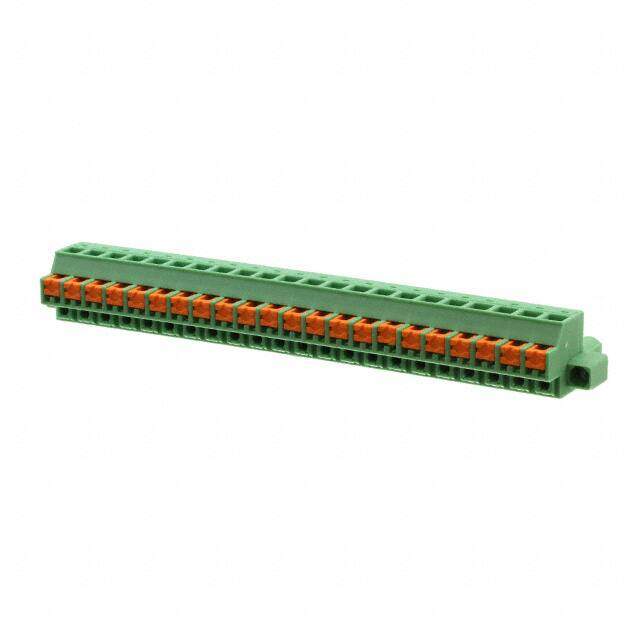

1860976
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FKCOW RoHS Compliant 2018 Lever Actuated Mating Flange Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets 12-26AWG 270° 12A 320V
PDF
/
Buying Options
Total Price: USD $51.62
Unit Price: USD $51.617976
≥1 USD $51.617976
≥200 USD $20.596775
≥500 USD $19.907503
≥1000 USD $19.567462
Inventory: 1235
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Positions Per Level 21
Voltage - IEC 320V
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Insulation Height 0.933 23.70mm
Pitch 0.200 5.08mm
Color Green
Number of Positions 22
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Lever Actuated, Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON FKCOW
Published 2018
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 9 Weeks
