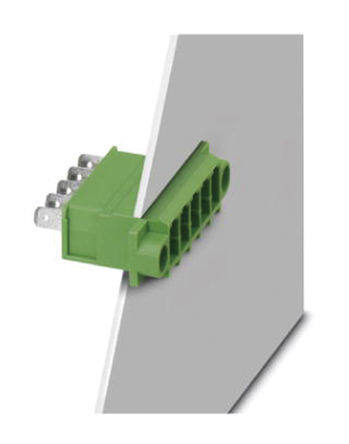

1860773
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HEADER GREEN
PDF
/
Inventory: 1237
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Rated Current 8A
Current - IEC 8A
Header Orientation Vertical
Safety Approval UL
Number of Ways 15
Voltage - IEC 160V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Termination Style Press-Fit
Insulation Height 0.362 9.20mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Number of Rows 1
Color Green
Number of Positions 15
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMCV
Published 2015
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Contact Plating Silver, Tin
