1860743
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

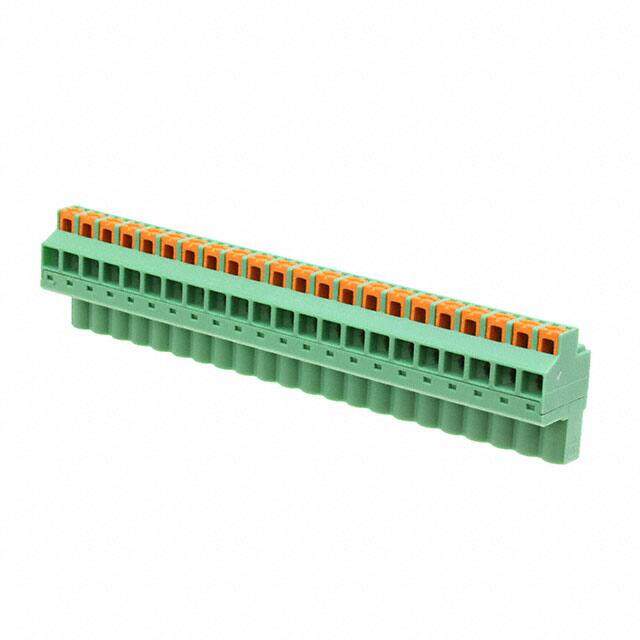

COMBICON FKCOW RoHS Compliant 2009 Lever Actuated Terminal Block Plug, Female Sockets 12-26AWG 270° 12A 320V
PDF
/
Buying Options
Total Price: USD $50.63
Unit Price: USD $50.631989
≥1 USD $50.631989
≥200 USD $20.202905
≥500 USD $19.528075
≥1000 USD $19.194598
Inventory: 1146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2009
Series COMBICON FKCOW
Feature Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug, Female Sockets
Number of Positions 21
Color Green
Pitch 0.200 5.08mm
Insulation Height 0.933 23.70mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 320V
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
