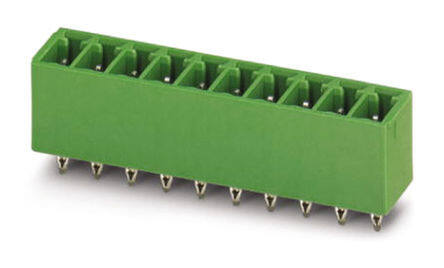

1860728 image
Favorite
1860728 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 10 Pos 3.81mm pitch Press In Header
PDF
/
Inventory: 1140
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 39.49mm
Length 4.9mm
Height 12.6mm

Technical

Number of Positions Per Level 10
Header Orientation Vertical
Safety Approval UL
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.150 3.81mm
Voltage 300V
Termination Style Press-Fit
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 3.91mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMCV
Published 2011
Packaging Bulk

Physical

Weight 2.51001g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 3 Weeks
