1859807
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

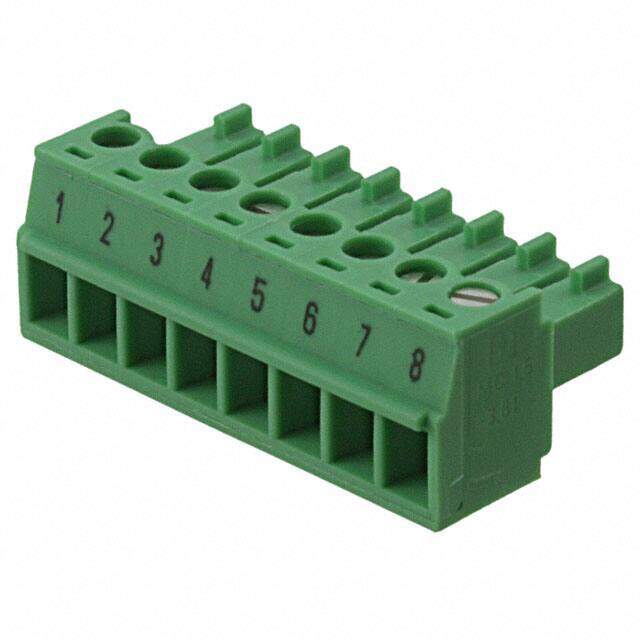

Socket enclosure - cable MC Total number of pins 8 Phoenix Contact 1859807 Contact spacing: 3.81 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $7.35
Unit Price: USD $7.348
≥1 USD $7.348
≥10 USD $7.14384
≥100 USD $6.67656
≥500 USD $6.142488
≥1000 USD $6.027437
Inventory: 242
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 31.27mm
Length 11.1mm
Height 16.1mm
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 160V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Color Green
Number of Positions 8
Type Plug, Female Sockets
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Positions Stamped
Series COMBICON MC
Published 2017
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 6 Weeks
