RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

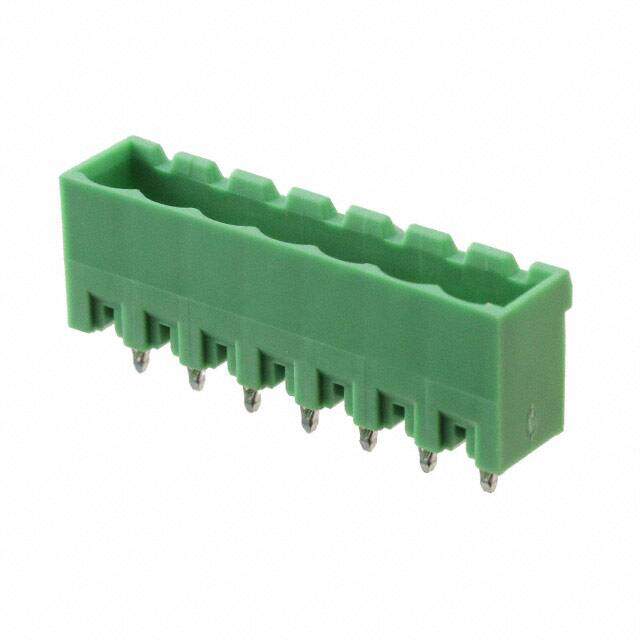

Description Pluggable Terminal Blocks 7 Pos 5.08mm pitch Press In Header
PDF
/
Inventory: 1261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 8.6mm
Length 37.56mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 7
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 7
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency UL
Termination Style Press-Fit
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 320V
HTS Code 8536.69.40.40
Voltage - Rated 200V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMSTBVA
Published 2003
Packaging Bulk

Physical

Weight 150.999993g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 3 Weeks
