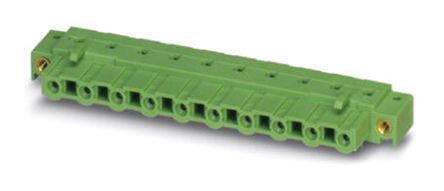

1859085
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 1122
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method PLUG IN
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 12
Voltage - IEC 1kV
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.402 10.20mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 400V
Number of Rows 1
Color Green
Number of Positions 12
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON GIC
Published 2011
Packaging Bulk
Physical
Weight 12.019999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
