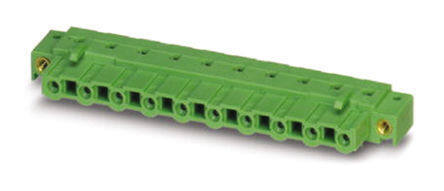

1859030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 7.460007g
Technical
Packaging Bulk
Published 2011
Series COMBICON GIC
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 7
Color Green
Voltage - Rated 400V
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.402 10.20mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - IEC 1kV
Header Orientation 90°, Right Angle
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
