1858099
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

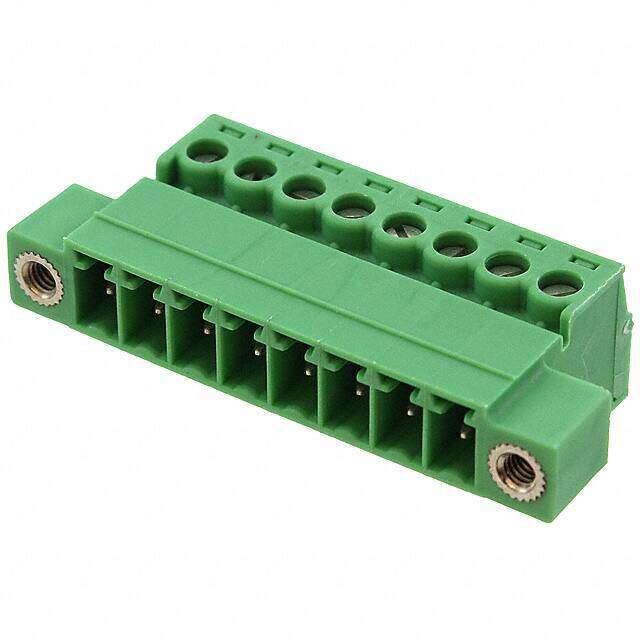

Pluggable Terminal Blocks 8 Pos 3.81mm Invert Plug 28-16AWG Screw
PDF
/
Buying Options
Total Price: USD $10.82
Unit Price: USD $10.824
≥1 USD $10.824
≥10 USD $10.5248
≥100 USD $9.83664
≥500 USD $9.049744
≥1000 USD $8.880291
Inventory: 139
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 8
Type Plug, Male Pins
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IMC
Published 2011
Packaging Bulk
Physical
Weight 102.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
