1858086
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

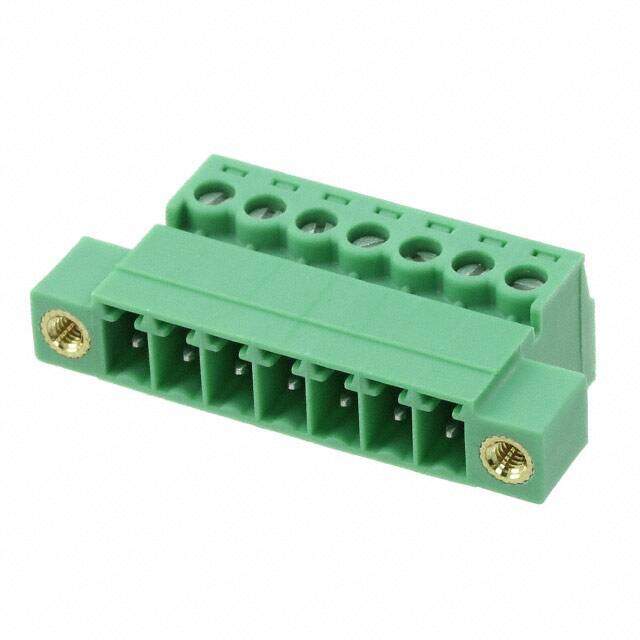

Pluggable Terminal Blocks 7 Pos 3.81mm Invert Plug 28-16AWG Screw
PDF
/
Buying Options
Total Price: USD $11.35
Unit Price: USD $11.354626
≥1 USD $11.354626
≥10 USD $10.71191
≥100 USD $10.105574
≥500 USD $9.533566
≥1000 USD $8.993928
Inventory: 6716
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.9mm
Length 37.06mm
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 7
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 7
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 11.1mm
Orientation Right Angle
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IMC
Published 2011
Packaging Bulk
Physical
Weight 6.460006g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
