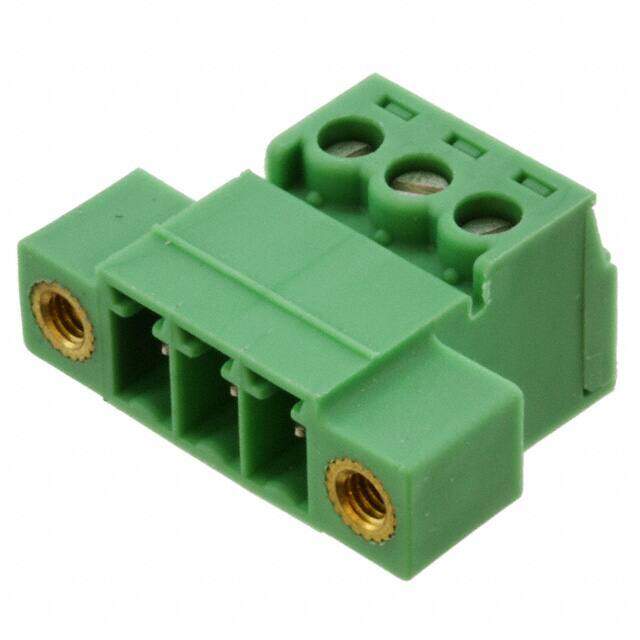

1858044 image
Favorite
1858044 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 3.81mm Invert Plug 28-16AWG Screw
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.2624
≥1 USD $5.2624
≥10 USD $5.11896
≥100 USD $4.78368
≥500 USD $4.400968
≥1000 USD $4.318618
Inventory: 130
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 21.82mm
Length 11.1mm
Height 17.9mm

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 3
Approval Agency CB, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.437 11.10mm
Depth 11.1mm
Orientation Right Angle
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IMC
Published 2010
Packaging Bulk

Physical

Weight 3.360014g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Panel
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
