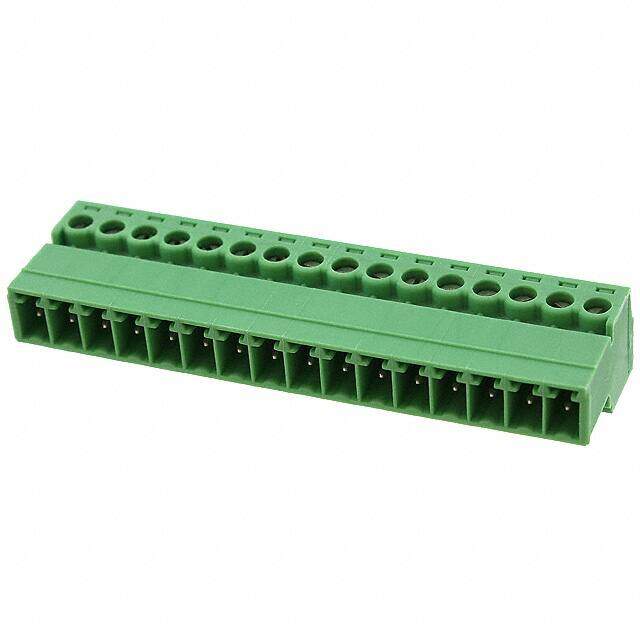

1858028
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 16 POS 3.81mm Screw RA Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $22.77
Unit Price: USD $22.7744
≥1 USD $22.7744
≥10 USD $22.15224
≥100 USD $20.70288
≥500 USD $19.04672
≥1000 USD $18.690109
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 12.699991g
Technical
Packaging Bulk
Published 2011
Series COMBICON IMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 17.9mm
Insulation Height 0.437 11.10mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 16
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 16
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 17.9mm
Length 61.75mm
Width 61.75mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
