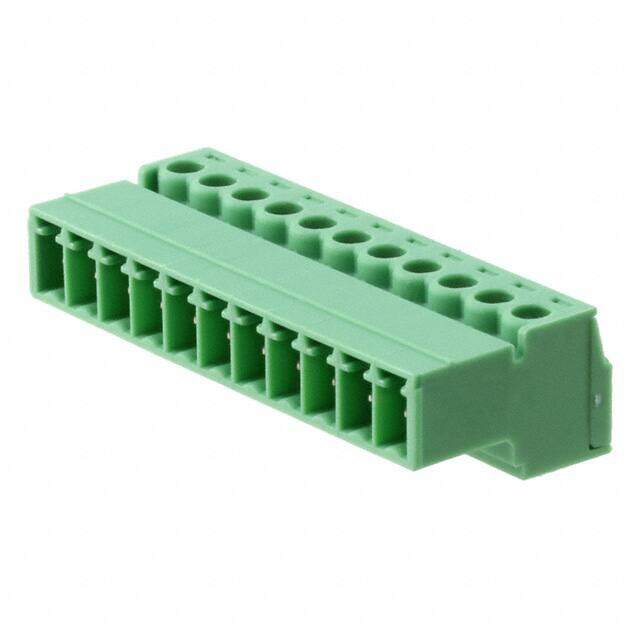

1857977
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 3.81mm Invert Plug 28-16AWG Screw
PDF
/
Buying Options
Total Price: USD $13.23
Unit Price: USD $13.2264
≥1 USD $13.2264
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 102.999998g
Technical
Packaging Bulk
Published 2011
Series COMBICON IMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Number of Positions 11
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.437 11.10mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 11
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
