1853201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

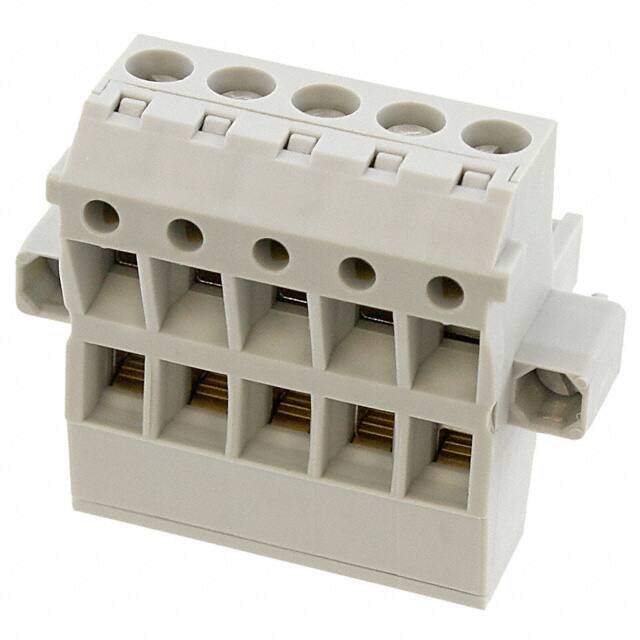

Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $11.07
Unit Price: USD $11.0704
≥1 USD $11.0704
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 36.6mm
Length 21.5mm
Height 28.9mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Number of Ways 5
Positions Per Level 5 (Mate), 10 (Input)
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 15A
Number of Levels 1 (Mate), 2 (Input)
Max Current Rating 12A
Voltage 300V
Housing Color Grey
Number of Contacts 5
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 1.138 28.90mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Gray
Number of Positions 5
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON TMSTBP
Published 2011
Packaging Bulk
Physical
Weight 17.579993g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 7 Weeks
