1853010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

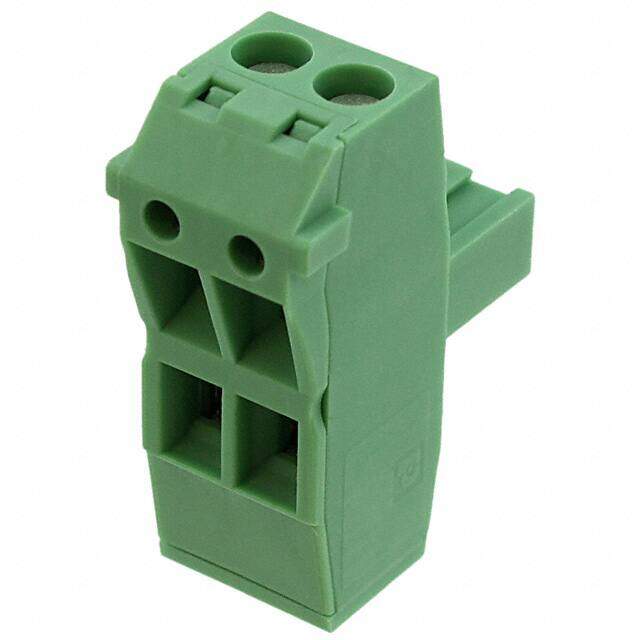

Conn Terminal Blocks F 2 POS 5.08mm Screw ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $11.8
Unit Price: USD $1.18
≥10 USD $1.18
≥100 USD $1.11321
Inventory: 30
Minimum: 10
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 21.5mm
Length 12.16mm
Height 21.5mm
Technical
Screw Size M3
Number of Positions Per Level 2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Number of Ways 2
Positions Per Level 2 (Mate), 4 (Input)
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 1.138 28.90mm
Depth 28.9mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON TMSTBP
Published 2011
Packaging Bulk
Physical
Weight 135.000004g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
