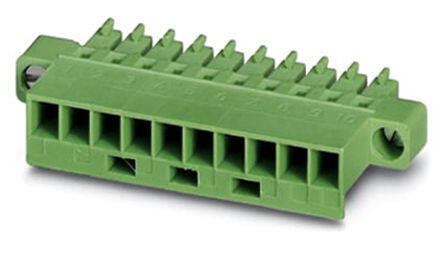

1852464
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 24-18 AWG Crimp
PDF
/
Buying Options
Total Price: USD $6.89
Unit Price: USD $6.891963
≥1 USD $6.891963
≥10 USD $6.501848
≥100 USD $6.133819
≥500 USD $5.786625
≥1000 USD $5.459079
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 8A
Wire Gauge or Range - mm2 0.2-1mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Voltage - IEC 320V
Wire Gauge or Range - AWG 22-24 AWG
Number of Decks 1
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 24 AWG
Current 5A
Number of Levels 1
Voltage 300V
Current Rating 8A
Insulation Height 0.343 8.71mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 12
Type Plug Housing for Female Sockets
Connector Type Crimp
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MCC
Published 2010
Packaging Bulk
Physical
Weight 4.550013g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
