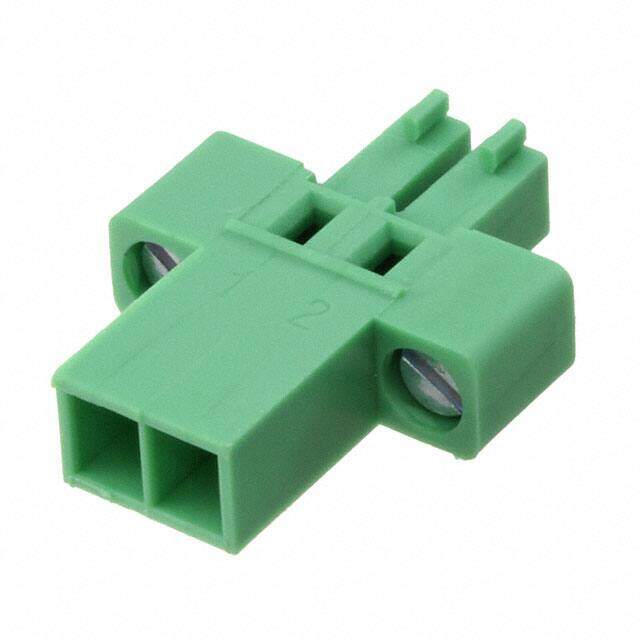

1852367 image
Favorite
1852367 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 3.81mm pitch Plug 24-18 AWG Crimp
PDF
/
Buying Options
Total Price: USD $1.33
Unit Price: USD $1.32619
≥1 USD $1.32619
≥10 USD $1.251123
≥100 USD $1.180302
≥500 USD $1.113496
≥1000 USD $1.050472
Inventory: 5273
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 8A
Wire Gauge or Range - mm2 0.2-1mm2
Plug Wire Entry 180°
Number of Ways 2
Voltage - IEC 320V
Wire Gauge or Range - AWG 22-24 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 18 AWG
Current 5A
Number of Levels 1
Voltage 300V
Current Rating 8A
Insulation Height 0.343 8.71mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
Number of Positions 2
Type Plug Housing for Female Sockets
Connector Type Crimp
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MCC
Published 2011
Packaging Bulk

Physical

Weight 1.649999g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
