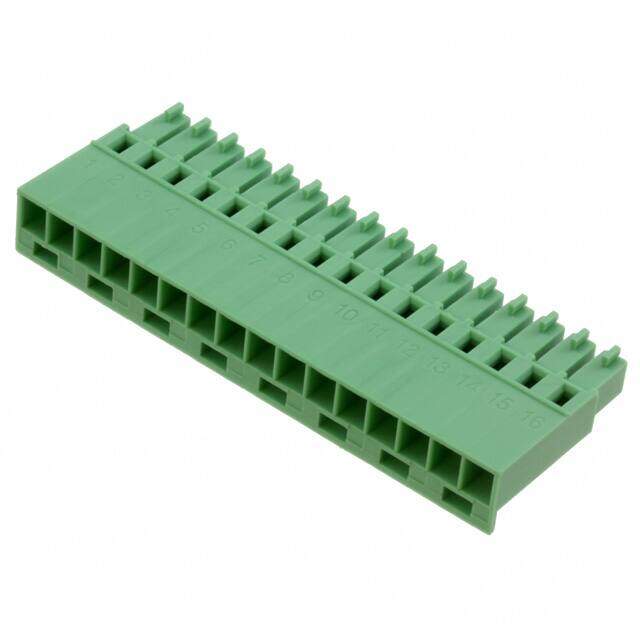

1852312 image
Favorite
1852312 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MCC RoHS Compliant 2011 Tin Terminal Block Plug Housing for Female Sockets UL94V-0 24AWG 180° 5A
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.355804
≥1 USD $5.355804
≥10 USD $5.052655
≥100 USD $4.766652
≥500 USD $4.496839
≥1000 USD $4.242302
Inventory: 971
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 8A
Wire Gauge or Range - mm2 0.2-1mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 16
Voltage - IEC 320V
Wire Gauge or Range - AWG 22-24 AWG
Number of Decks 1
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 24 AWG
Current 5A
Number of Levels 1
Voltage 300V
Current Rating 8A
Insulation Height 0.343 8.71mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 16
Type Plug Housing for Female Sockets
Connector Type Crimp
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCC
Published 2011
Packaging Bulk

Physical

Weight 4.730005g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
