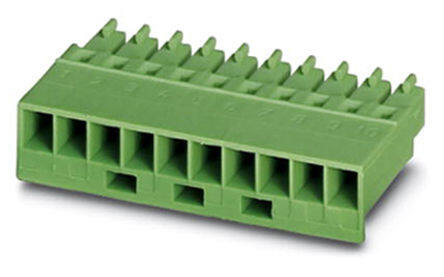

1852309
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 15 Pos 3.81mm pitch Plug 24-18 AWG Crimp
PDF
/
Buying Options
Total Price: USD $5.5
Unit Price: USD $5.503678
≥1 USD $5.503678
≥10 USD $5.192154
≥100 USD $4.898258
≥500 USD $4.620997
≥1000 USD $4.359432
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.869993g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Crimp
Type Plug Housing for Female Sockets
Number of Positions 15
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.343 8.71mm
Current Rating 8A
Voltage 300V
Number of Levels 1
Current 5A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Number of Decks 1
Wire Gauge or Range - AWG 22-24 AWG
Voltage - IEC 320V
Number of Ways 15
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1mm2
Current - IEC 8A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
