1852176
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

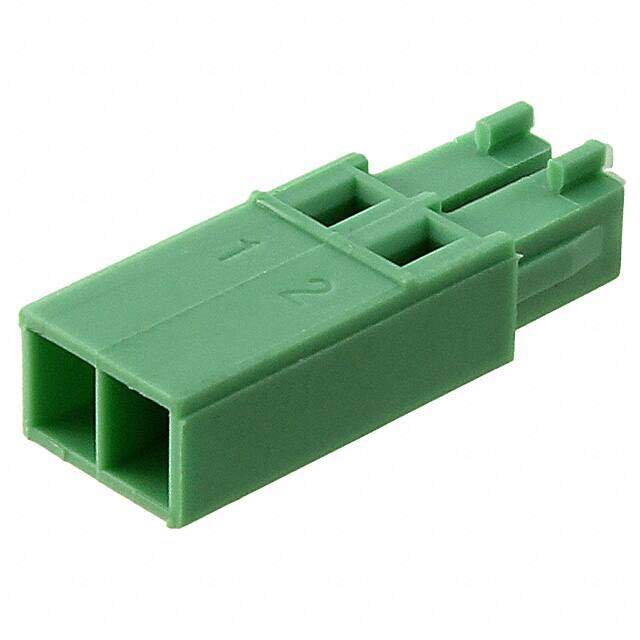

Pluggable Terminal Blocks 2 Pos 3.81mm pitch Plug 24-18 AWG Crimp
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.070725
≥1 USD $1.070725
≥10 USD $1.010119
≥100 USD $0.952949
≥500 USD $0.898999
≥1000 USD $0.848111
Inventory: 2429
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 777.00373mg
Technical
Packaging Bulk
Published 2011
Series COMBICON MCC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Crimp, Socket
Type Plug Housing for Female Sockets
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Depth 23.1mm
Insulation Height 0.343 8.71mm
Current Rating 8A
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge or Range - AWG 22-24 AWG
Current - UL 5A
Voltage - IEC 320V
Number of Ways 2
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1mm2
Number of Positions Per Level 2
Dimensions
Height 8.7mm
Length 8.41mm
Width 23.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
