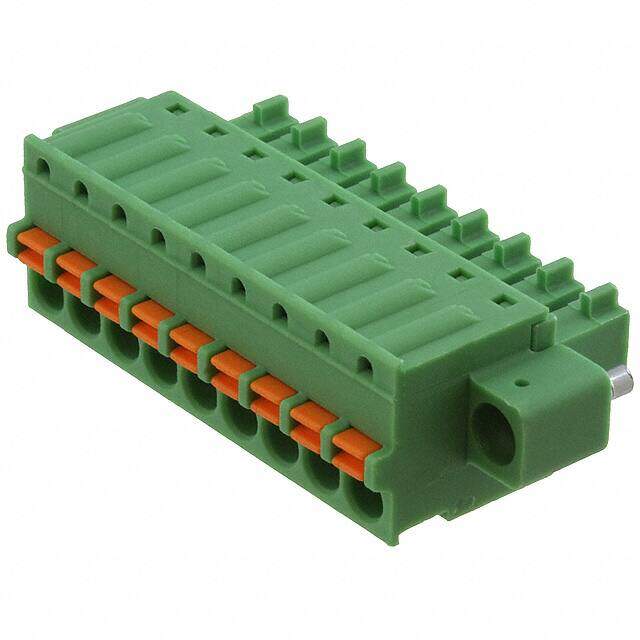

1851300 image
Favorite
1851300 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 3.81mm pitch Plug 26-16AWG Spring
PDF
/
Buying Options
Total Price: USD $14.01
Unit Price: USD $14.0096
≥1 USD $14.0096
≥10 USD $13.6268
≥100 USD $12.73536
≥500 USD $11.716584
≥1000 USD $11.4972
Inventory: 108
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 44.68mm
Length 12.4mm
Height 20.8mm

Technical

Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 9
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 9
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.488 12.40mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FK-MCP
Published 2011
Packaging Bulk

Physical

Weight 101.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
