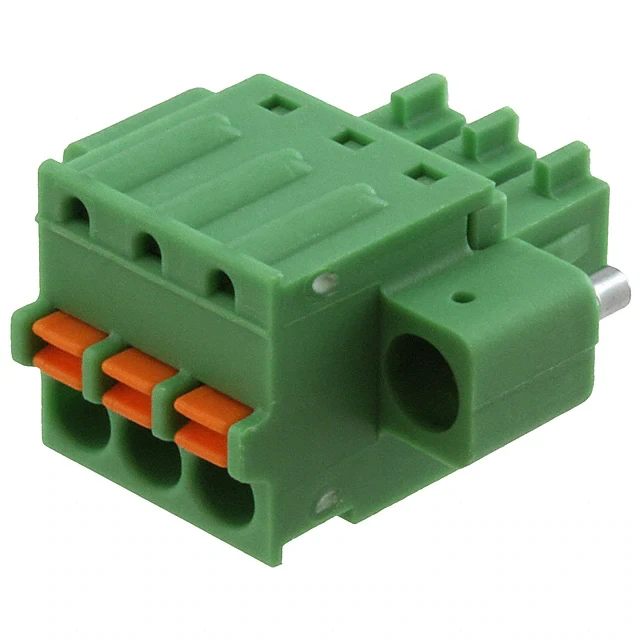

1851245
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 3.81mm pitch Plug 26-16AWG Spring
PDF
/
Buying Options
Total Price: USD $3.95
Unit Price: USD $3.9512
≥1 USD $3.9512
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 21.82mm
Length 12.4mm
Height 20.8mm
Technical
Fastening Method SPRING LOADED
Stripping Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 3
Approval Agency CB, CSA, VDE, cULus
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Insulation Height 0.488 12.40mm
Depth 12.4mm
Orientation Right Angle
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FK-MCP
Published 2012
Packaging Bulk
Physical
Weight 101.999997g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
