1851180
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

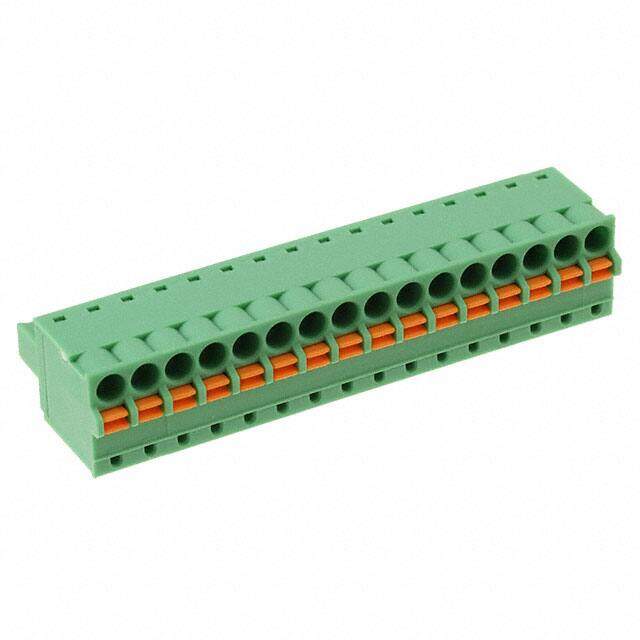

Pluggable Terminal Blocks 16 Pos 3.81mm pitch Plug 26-16AWG Spring
PDF
/
Buying Options
Total Price: USD $24.54
Unit Price: USD $24.5432
≥1 USD $24.5432
≥10 USD $23.87264
≥100 USD $22.31064
≥500 USD $20.525824
≥1000 USD $20.141546
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 61.75mm
Length 12.4mm
Height 20.8mm
Technical
Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 16
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Insulation Height 0.488 12.40mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 16
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MCP
Published 2003
Packaging Bulk
Physical
Weight 101.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
