1851083
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

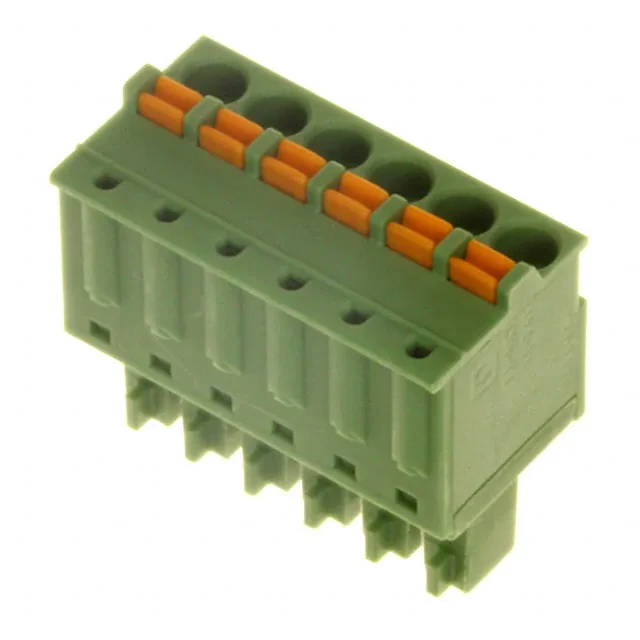

TERM BLOCK PLUG 6POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $9.2
Unit Price: USD $9.2048
≥1 USD $9.2048
≥10 USD $8.95752
≥100 USD $8.37144
≥500 USD $7.70176
≥1000 USD $7.557546
Inventory: 694
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 101.999997g
Technical
Packaging Bulk
Published 1998
Series COMBICON FK-MCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.488 12.40mm
Current Rating 8A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 6
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Stripping Length 9mm
Fastening Method SPRING LOADED
Dimensions
Height 20.8mm
Length 12.4mm
Width 23.65mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
