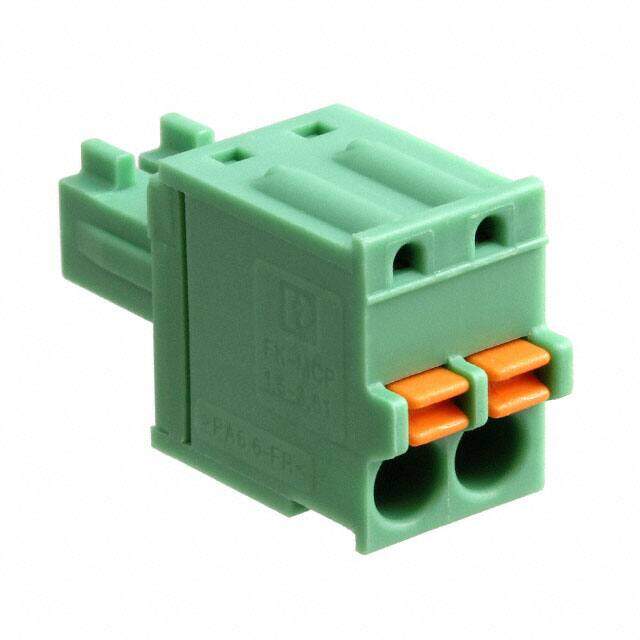

1851041
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $3.07
Unit Price: USD $3.0712
≥1 USD $3.0712
≥10 USD $2.99112
≥100 USD $2.79576
≥500 USD $2.572064
≥1000 USD $2.523946
Inventory: 451
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 20.8mm
Length 8.41mm
Height 12.4mm
Technical
Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 2
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 2
Voltage - Rated AC 160V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Insulation Height 0.488 12.40mm
Depth 20.8mm
Orientation Straight
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MCP
Published 2003
Packaging Bulk
Physical
Weight 101.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
