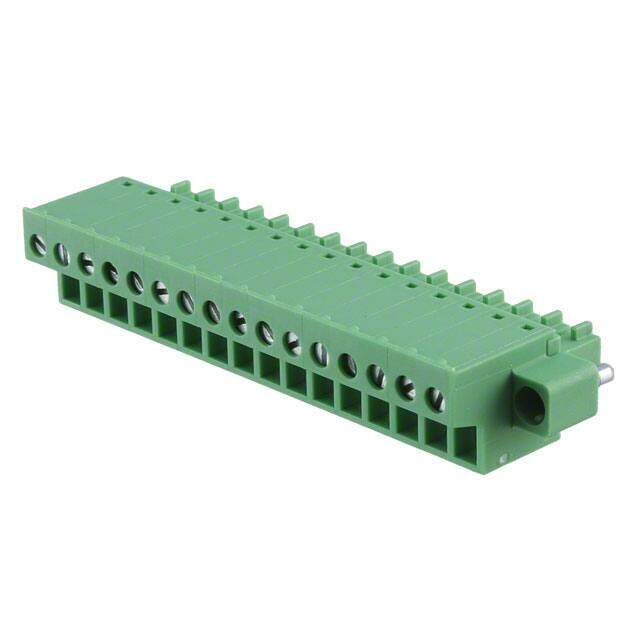

1850990 image
Favorite
1850990 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 16 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $57.87
Unit Price: USD $57.86738
≥1 USD $57.86738
≥200 USD $23.089972
≥500 USD $22.317987
≥1000 USD $21.937246
Inventory: 1135
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 71.35mm
Length 12.3mm
Height 21.7mm

Technical

Screw Size M2
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 16
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-30 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Pressure Clip
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.484 12.30mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 16
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FRONT-MC
Published 2010
Packaging Bulk

Physical

Weight 98.999993g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
