1850916
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

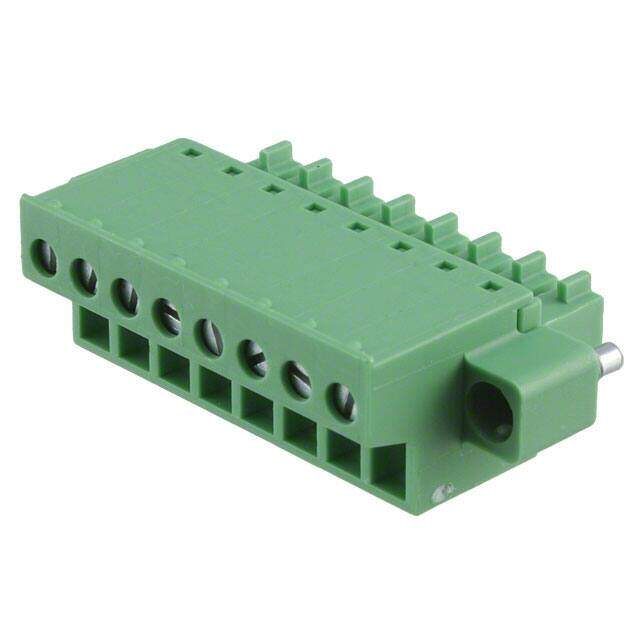

Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $13.96
Unit Price: USD $13.9568
≥1 USD $13.9568
≥10 USD $13.57576
≥100 USD $12.68784
≥500 USD $11.672848
≥1000 USD $11.454291
Inventory: 69
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 98.999993g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT-MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Insulation Height 0.484 12.30mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Number of Positions Per Level 8
Screw Size M2
Dimensions
Height 21.7mm
Length 12.3mm
Width 40.87mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
