1850851
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

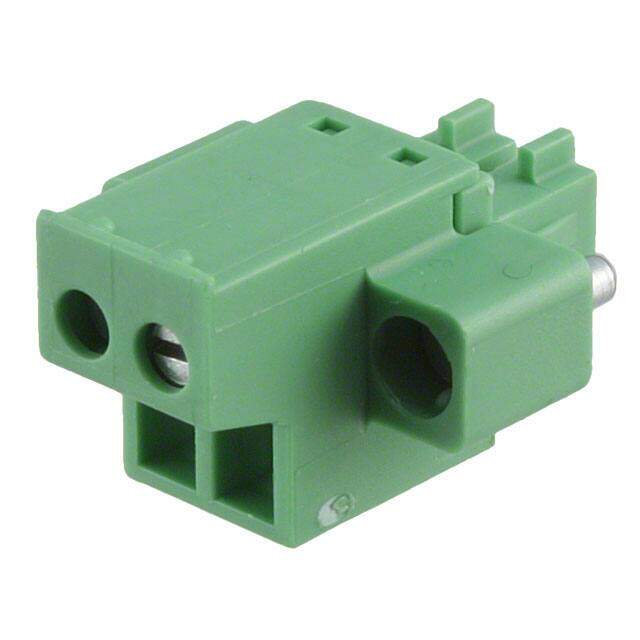

Pluggable Terminal Blocks 2 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.5376
≥1 USD $3.5376
≥10 USD $3.4408
≥100 USD $3.21552
≥500 USD $2.958296
≥1000 USD $2.902909
Inventory: 402
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 98.999993g
Technical
Packaging Bulk
Published 2010
Series COMBICON FRONT-MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.484 12.30mm
Current Rating 8A
Termination Style Screw - Pressure Clip
Number of Contacts 2
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
