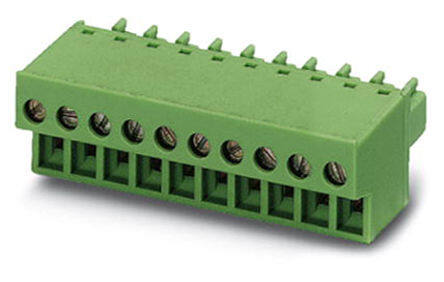

1850822 image
Favorite
1850822 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON FRONT-MC RoHS Compliant 2011 Tin Terminal Block Plug, Female Sockets UL94V-0 30AWG 180° 8A
PDF
/
Buying Options
Total Price: USD $79.05
Unit Price: USD $79.049709
≥1 USD $79.049709
≥200 USD $31.54111
≥500 USD $30.488164
≥1000 USD $29.966943
Inventory: 1090
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 98.999993g

Technical

Packaging Bulk
Published 2011
Series COMBICON FRONT-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 18
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.484 12.30mm
Current Rating 8A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 18
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Screw Size M2

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
