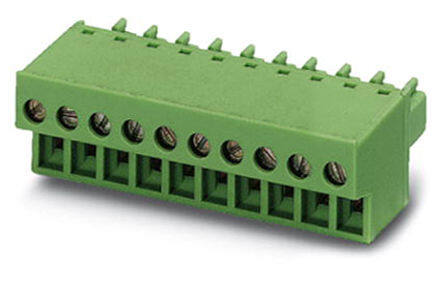

1850819
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FRONT-MC RoHS Compliant 2011 Tin Terminal Block Plug, Female Sockets UL94V-0 30AWG 180° 8A
PDF
/
Buying Options
Total Price: USD $71.9
Unit Price: USD $71.89703
≥1 USD $71.89703
≥200 USD $28.688178
≥500 USD $27.729761
≥1000 USD $27.255804
Inventory: 1197
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 17
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Pressure Clip
Current Rating 8A
Insulation Height 0.484 12.30mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 17
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FRONT-MC
Published 2011
Packaging Bulk
Physical
Weight 98.999993g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
