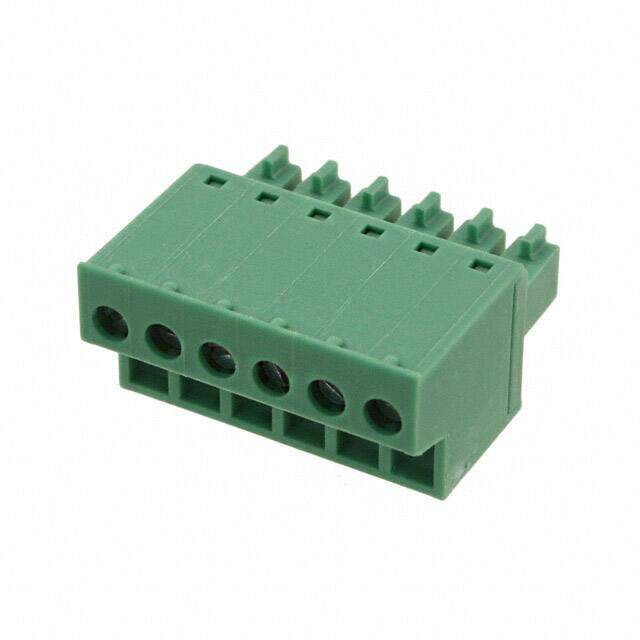

1850709
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $10.85
Unit Price: USD $10.8504
≥1 USD $10.8504
≥10 USD $10.55032
≥100 USD $9.8604
≥500 USD $9.071568
≥1000 USD $8.901763
Inventory: 193
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 98.999993g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA, APPROVAL: VDE
Pitch 0.150 3.81mm
Orientation Straight
Depth 21.7mm
Insulation Height 0.484 12.30mm
Current Rating 8A
Termination Style Screw - Pressure Clip
Approval Agency CSA
Number of Contacts 6
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 6
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Screw Size M2
Dimensions
Height 21.7mm
Length 23.65mm
Width 23.65mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
