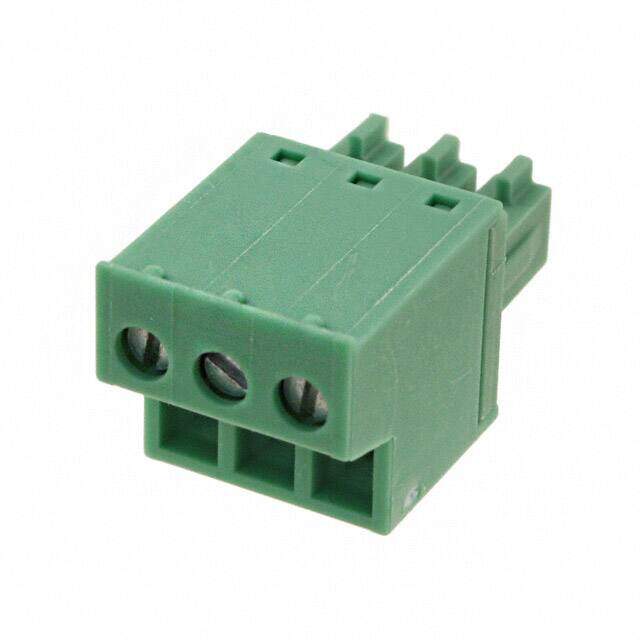

1850673 image
Favorite
1850673 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $5.68
Unit Price: USD $5.6848
≥1 USD $5.6848
≥10 USD $5.44632
≥100 USD $5.209776
≥500 USD $5.067656
≥1000 USD $4.73616
≥3000 USD $4.357285
Inventory: 137
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 21.7mm
Length 12.22mm

Technical

Screw Size M2
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 3
Termination Style Screw - Pressure Clip
Current Rating 8A
Insulation Height 0.484 12.30mm
Depth 21.7mm
Orientation Straight
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FRONT-MC
Published 2011
Packaging Bulk

Physical

Weight 98.999993g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
