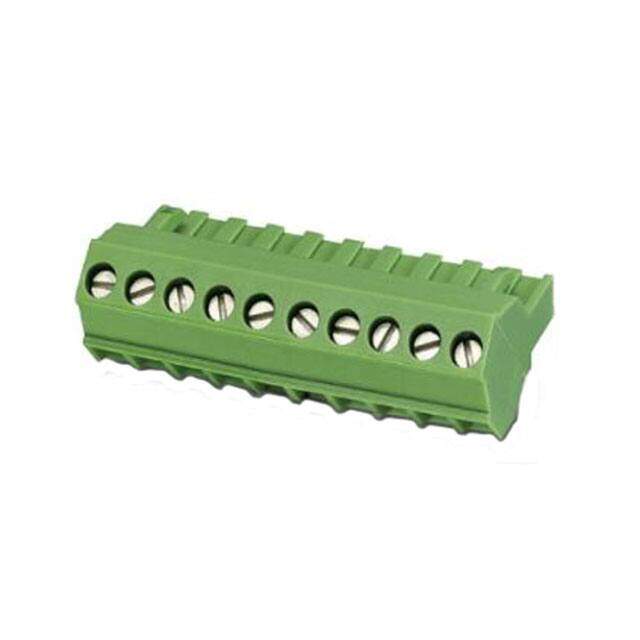

1850589
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 19POS 5.08MM
PDF
/
Buying Options
Total Price: USD $48.31
Unit Price: USD $48.310781
≥1 USD $48.310781
≥200 USD $19.277311
≥500 USD $18.632677
≥1000 USD $18.314955
Inventory: 1135
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Rated Voltage 250V
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 225°
Safety Approval UL
Number of Ways 19
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Reach Compliance Code unknown
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Number of Rows 1
Color Green
Number of Positions 19
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON SMSTB
Published 2015
Packaging Bulk
Physical
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 6 Weeks
