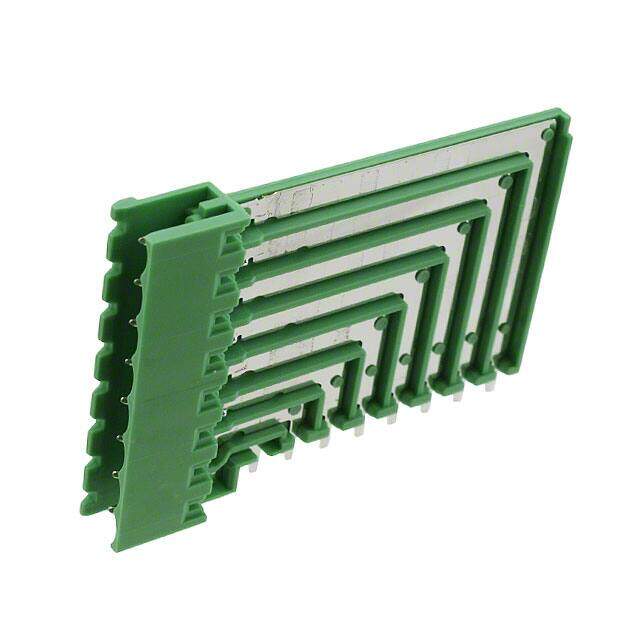

1850495 image
Favorite
1850495 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.8
Unit Price: USD $4.796
≥1 USD $4.796
≥10 USD $4.66136
≥100 USD $4.356
≥500 USD $4.00752
≥1000 USD $3.702582
≥3000 USD $3.539272
Inventory: 132
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 59.3mm
Length 8.6mm
Height 40.64mm

Technical

Header Orientation 90°, Right Angle, Vertical
Safety Approval UL
Number of Ways 8
Voltage - IEC 630V
Number of Decks 1
Number of Poles 8
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.126 3.20mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 8A
Insulation Height 1.600 40.64mm
Depth 40.64mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature PA, 94V-2
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBO
Published 2012
Packaging Bulk

Physical

Weight 156.999999g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
