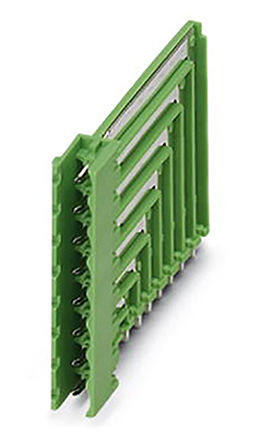

1850482
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks MSTBO 2.5/ 7-GL-5.08
PDF
/
Inventory: 1243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 156.999999g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 7
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-2
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 7.87mm
Insulation Height 1.400 35.56mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 7
Safety Approval UL
Header Orientation 90°, Right Angle, Vertical
Dimensions
Length 19.94mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
