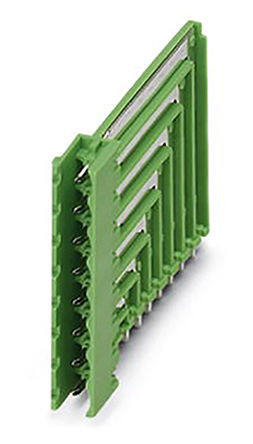

1850479
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $10.19
Unit Price: USD $10.19073
≥1 USD $10.19073
≥200 USD $4.066051
≥500 USD $3.930823
≥1000 USD $3.863865
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 156.999999g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-2
Pitch 0.200 5.08mm
Insulation Height 1.200 30.48mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle, Vertical
Dimensions
Height 5.8mm
Length 23.74mm
Width 8.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
