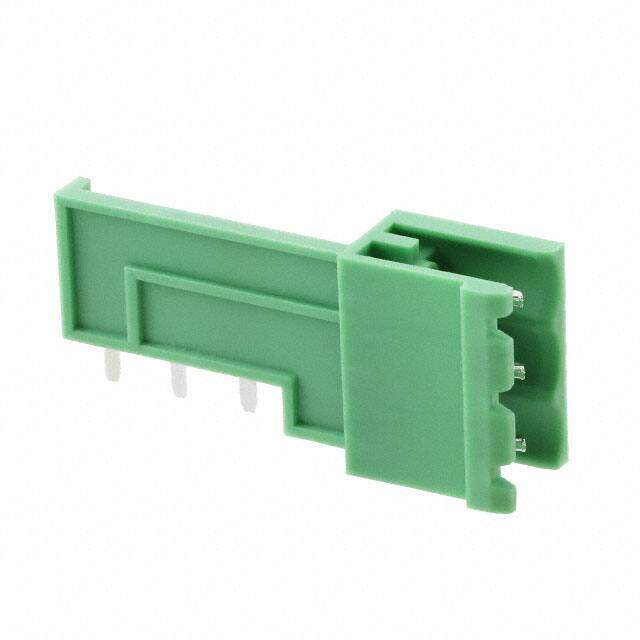

1850440
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 156.999999g
Technical
Packaging Bulk
Published 2012
Series COMBICON MSTBO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-2
Pitch 0.200 5.08mm
Insulation Height 0.600 15.24mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle, Vertical
Dimensions
Height 15.24mm
Length 8.6mm
Width 33.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
