1848915
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

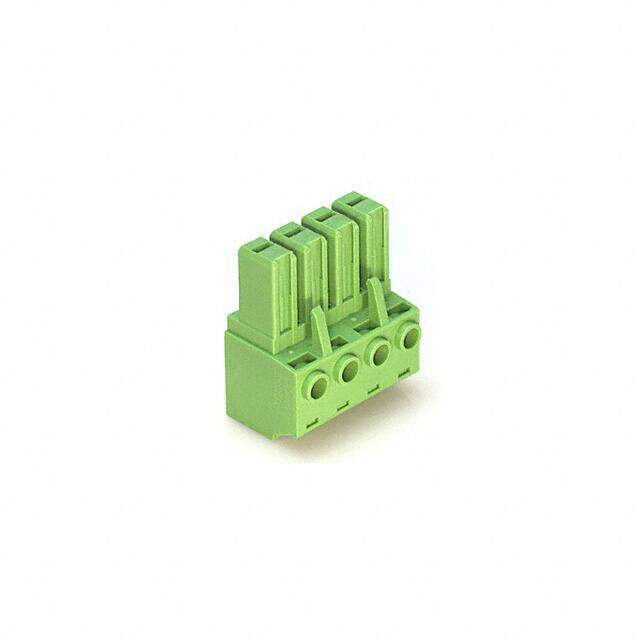

TERM BLOCK PLUG 4POS STR 7.62MM
PDF
/
Inventory: 1074
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2003
Series COMBICON PC
Feature Retention Latches (Non-Wire Side)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 800V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 35.5mm
Insulation Height 0.776 19.70mm
Current Rating 20A
Termination Style Screw - Rising Cage Clamp
Approval Agency CSA, UL
Number of Contacts 4
Voltage 800V
Max Supply Voltage 800V
Max Current Rating 20A
Number of Levels 1
Current 20A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 10-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 10mm
Screw Size M3
Dimensions
Height 19.7mm
Length 30.46mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
