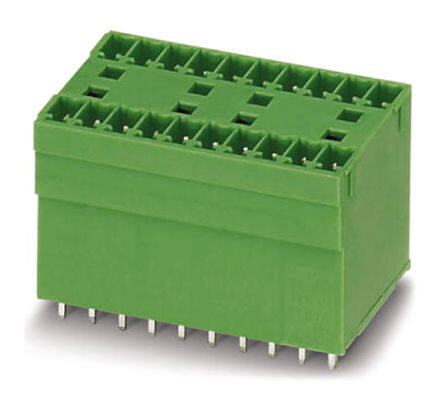

1847725
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 5965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 118.999987g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCDV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 2
Voltage - Rated 160V
Pitch 0.150 3.81mm
Depth 22.7mm
Insulation Height 0.862 21.89mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 320V
Number of Ways 2
Safety Approval UL; CSA
Header Orientation Vertical
Fastening Method PLUG IN
Dimensions
Length 9.01mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
