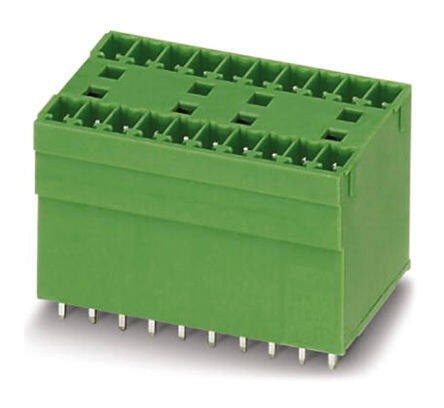

1847712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.248505
≥1 USD $4.248505
≥10 USD $4.008022
≥100 USD $3.781151
≥500 USD $3.567132
≥1000 USD $3.365216
Inventory: 4760
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.690003g
Technical
Packaging Bulk
Published 2010
Series COMBICON MCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 9.2mm
Length 70.1mm
Width 7.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
