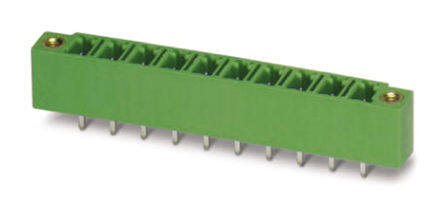

1847686 image
Favorite
1847686 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.67
Unit Price: USD $3.6696
≥1 USD $3.6696
Inventory: 133
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 21.6mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 9
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 9.74mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 9
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2011
Packaging Bulk

Physical

Weight 122.999991g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 5 Weeks
