1847547
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

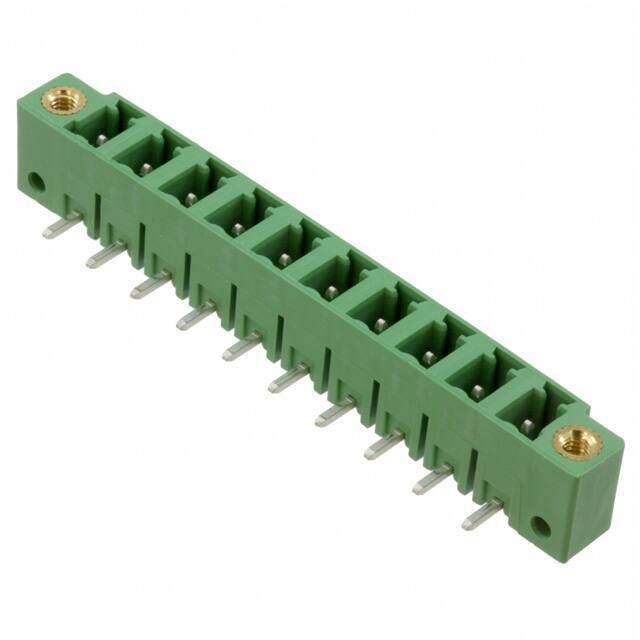

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.22
Unit Price: USD $5.222346
≥1 USD $5.222346
≥10 USD $4.926741
≥100 USD $4.647864
≥500 USD $4.384779
≥1000 USD $4.136587
Inventory: 945
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.069999g
Technical
Packaging Bulk
Published 2010
Series COMBICON MC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 7mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 10
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
