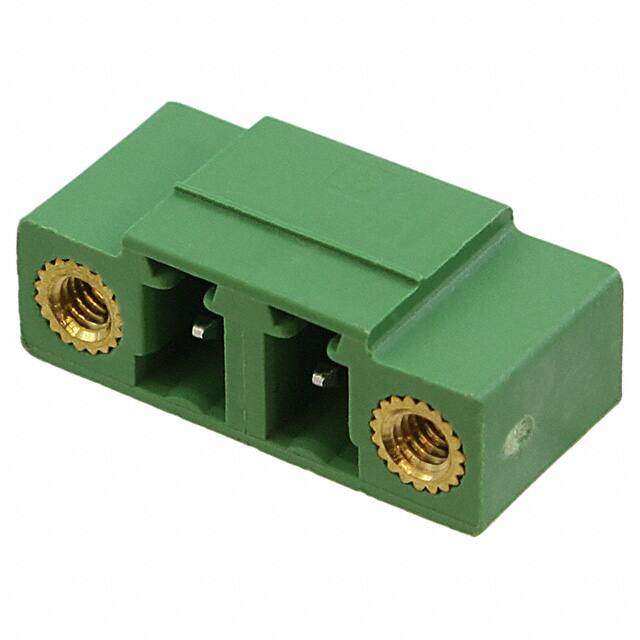

1847466
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.1472
≥1 USD $2.1472
≥10 USD $2.08472
≥100 USD $1.94832
≥500 USD $1.792472
≥1000 USD $1.758909
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 122.999991g
Technical
Packaging Bulk
Published 2010
Series COMBICON MC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT; 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval CSA; UL
Header Orientation 90°, Right Angle
Fastening Method PLUG IN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
