1847327
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

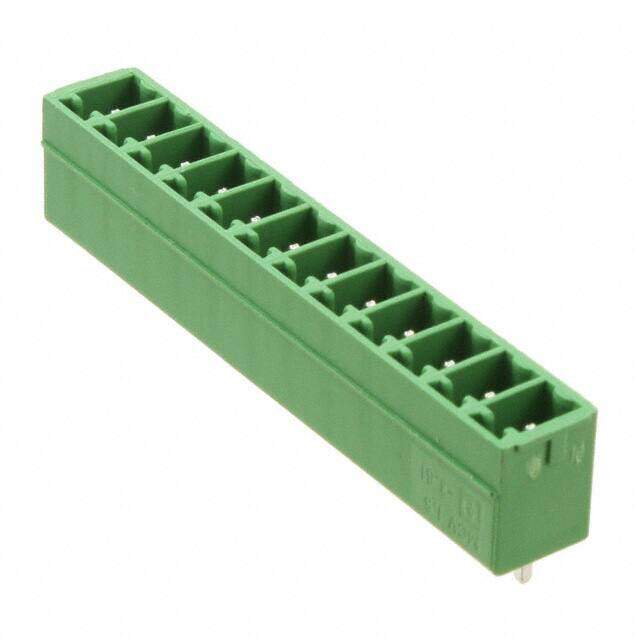

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 12
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Number of Ways 12
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Gold
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCV
Published 2011
Packaging Bulk
Physical
Weight 3.321997g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
