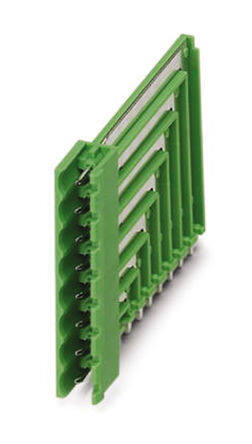

1847136
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Header Orientation 90°, Right Angle, Vertical
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.126 3.20mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 1.000 25.40mm
Depth 8.6mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature PA, 94V-2
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 5
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBO
Published 2011
Packaging Bulk
Dimensions
Length 44.06mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Physical
Weight 156.999999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
