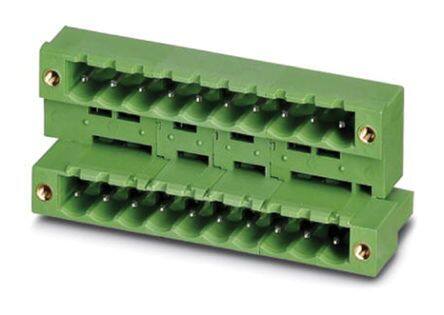

1846739
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2014
Series COMBICON MDSTB
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.933 23.70mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 10A
Fastening Method PLUG IN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
