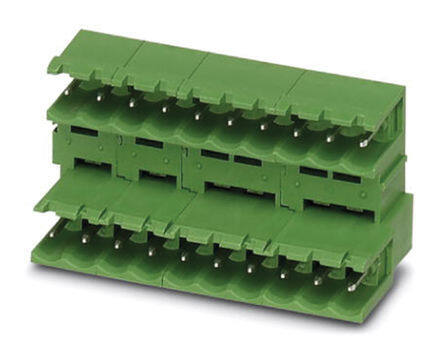

1846438
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1147
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 16.889994g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTB
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 18
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.933 23.70mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 9
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 10A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
