RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

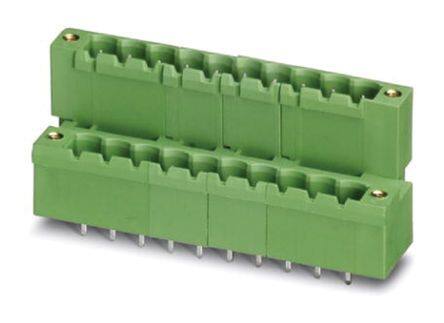

Description Pluggable Terminal Blocks 8 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 10A
Header Orientation Vertical
Safety Approval UL
Number of Ways 8
Positions Per Level 8
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 2
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.870 22.10mm
Pitch 0.197 5.00mm
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Number of Positions 16
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MDSTBV
Published 2014
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 6 Weeks
