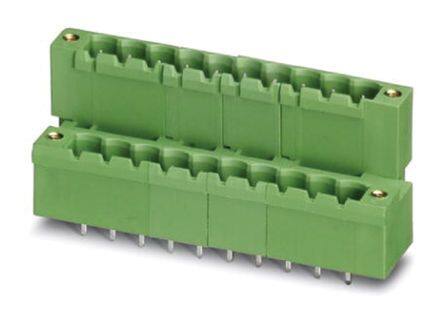

1846124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $15.19
Unit Price: USD $15.193996
≥1 USD $15.193996
≥10 USD $14.333954
≥100 USD $13.522599
≥500 USD $12.757176
≥1000 USD $12.035072
Inventory: 9412
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Depth 14mm
Insulation Height 0.870 22.10mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Current - IEC 10A
Dimensions
Length 14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
